Barracuda NextGen Firewall: Auto Scale, PAYG, and AWS Security Competency

In the shared security responsibility model, Amazon Web Services (AWS) is responsible for the security of the cloud infrastructure that includes the physical facilities, servers, networking gears, and hypervisors. The customer, on the other hand, is responsible for the security of everything running in the cloud, such as the operating systems, applications/workloads, network configurations, data, and connections to the cloud. Scalable and cost-effective cloud security has become a top priority for enterprises as they are moving workloads to AWS in droves.

With the Barracuda Web Application Firewall already in the AWS Security Competency program and the Barracuda NextGen Firewall joining soon, Barracuda is effectively one of a handful of security vendors that demonstrates deep technical knowledge, integration and the highest degree of cloud automation.

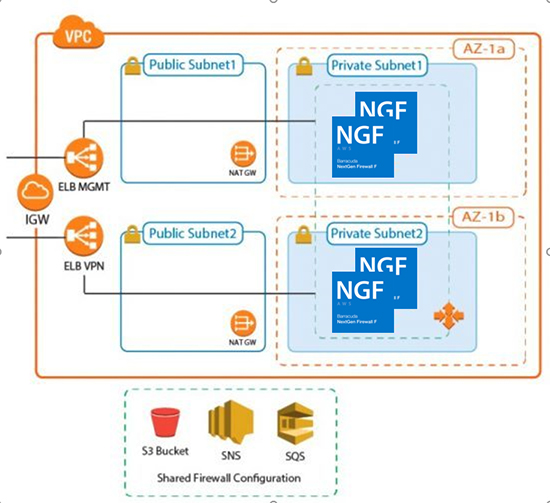

Protecting highly dynamic AWS resources with a static firewall setup is neither efficient nor economical. With the Barracuda NextGen Firewall (NGF) 7.1 release, customers can deploy an NGF Auto Scaling Cluster that scales with the size of their workloads in the AWS cloud, thereby creating a cost-effective, robust solution for securing and connecting to cloud resources. New Barracuda NGF instances will start with automatic configuration, thus no need for user intervention. The NGF cluster must be deployed using CloudFormation template. The template deploys a VPC with public and private subnets in two Availability Zones. In the private subnets, the NGF cluster is deployed. In the public subnets, the Elastic Load Balancer (ELB) and two NAT gateways are deployed (one for each Availability Zone). The NAT gateways are required for the firewalls to be able to access the AWS backend. APIs are required to enable the secure configuration sync over the AWS backend.

Configuration of Barracuda NextGen Firewall Auto Scaling Cluster in AWS

The firewall cluster can be deployed either to integrate with existing resources in an AWS region or as part of an auto-scaling application. Both options offer an integrated Barracuda Web Application Firewall (WAF) as a second security tier. The firewall cluster integrates tightly with AWS services and APIs. Configuration changes are synchronized securely using a combination of native AWS services including S3, SNS and SQS, with all instances sharing the same configuration. The admin can configure the changes and troubleshoot connectivity issues as if using a single firewall instance. The firewall cluster is highly available and scalable across multiple AWS Availability Zones, without any single point of failure such as additional management or work node instances. The firewall cluster uses the PAYG image of the Barracuda NextGen Firewall from the AWS Marketplace. This allows you to quickly deploy without the need for long-term licensing commitments.

Barracuda NextGen Firewalls now also seamlessly integrate into the management concept for AWS. This includes a single spot to search for Log files, seamless integration to the Identity and Access Management services as well as provisioning of easy to use reference architectures for the most prevalent use cases.

For more information on Barracuda NextGen Firewall, visit our Barracuda AWS solutions website here and our Barracuda NextGen Firewall F documentation here.



---
